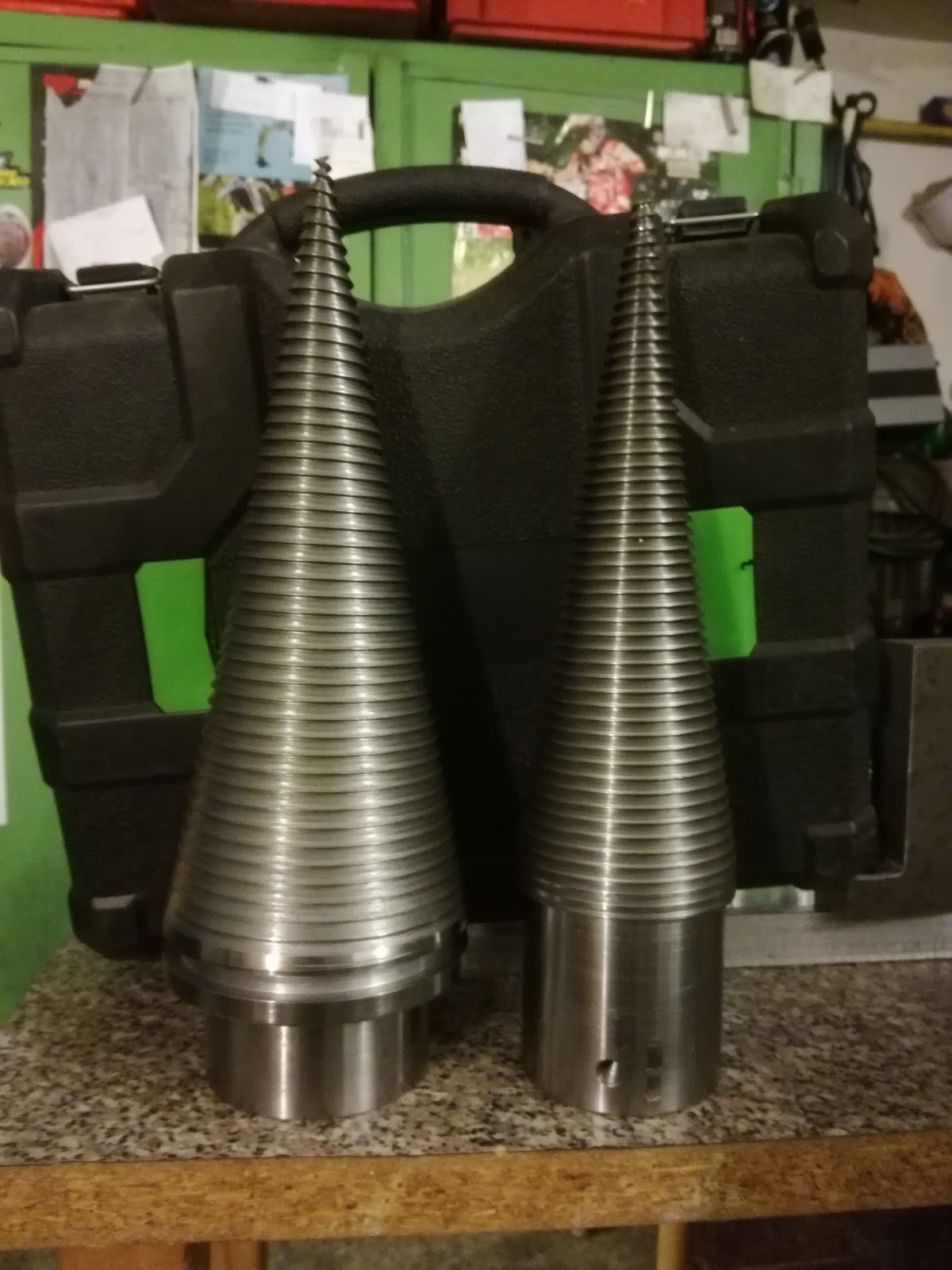

Log Wood Screw Type Splitters Cones Cleaver Ø 120mm, 90mm, 80mm
--------------------------------------------------------------------------------
Log Splitter Cone Ø 120 mm
Materials: steel ( 16MnCr5, 527M20 )
Dimensions: 300 mm x 120 mm
Inner hole: as needed
Price £ 89 + shipping £ 22
Production on order within 5 working days.
---------------------------------------------------------------------------------
Log Splitter Cone Ø 90 mm
Materials: steel ( 16MnCr5, 527M20 )
Dimensions: 300 mm x 90 mm
Inner hole: as needed
Price £ 62 + shipping £ 22
Production on order within 5 working days.
------------------------------------------------------------------------------
Log splitter Cone Ø 80 mm
Materials: steel ( 16MnCr5, 527M20 )
Dimensions: 300 mm x 80 mm
Inner hole: as needed
Price £ 45 + shipping £ 22
--------------------------------------------------------------------------------
Log wood splitter Cone for Ground Drill
Video Youtube
Price £ 45 + shipping £ 22
ALL Photo
Technical parameters
Diameter: 80 mm 90 mm 120 mm
Angle of climb: 20 degrees
Used material: steel ( 16MnCr5, 527M20 )
Climb of the thread: 5 mm ( Thread the left or the right of )
Depth of thread: 5 mm ( Thread the left or the right of )
Tear cone has an inner hole: from 22 mm to 60 mm
(ensure using an allen robotic suit who battles evil M8 mm into the groove of the motor for safety) (if you need another size please contact, we have hole bore from 22 to 60 mm )
(ensure using an allen robotic suit who battles evil M8 mm into the groove of the motor for safety) (if you need another size please contact, we have hole bore from 22 to 60 mm )
The cone is additionally subjected to the heat treatment (quenching and tempering), and everything is performed at the professional unit.
What the electric motor on the cone splitting:
the Actual electric motor from 3 kW to 7,5 kW /speed- 750/960/1450
the electric Motor with a gearbox from 1,1 kW to 5,5 kW /speed-from60 to 750 rpm
( the lower the speed, the greater the force, and it should be a little more print on the chopping block in the first drill)
Distance from the pad and log splitter cone 7 cm !!!
What the electric motor on the cone splitting:
the Actual electric motor from 3 kW to 7,5 kW /speed- 750/960/1450
the electric Motor with a gearbox from 1,1 kW to 5,5 kW /speed-from60 to 750 rpm
( the lower the speed, the greater the force, and it should be a little more print on the chopping block in the first drill)
Distance from the pad and log splitter cone 7 cm !!!
Log Wood Splitter Cone
my video:
 |
